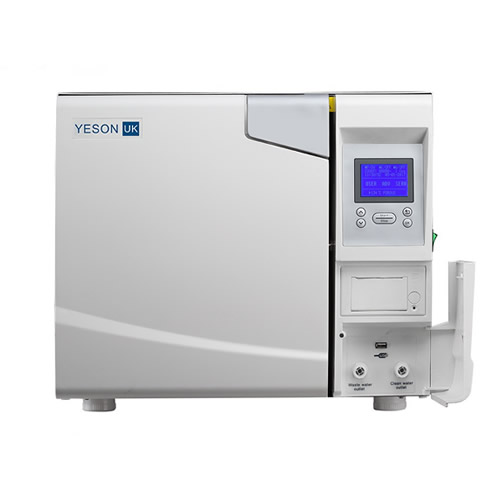

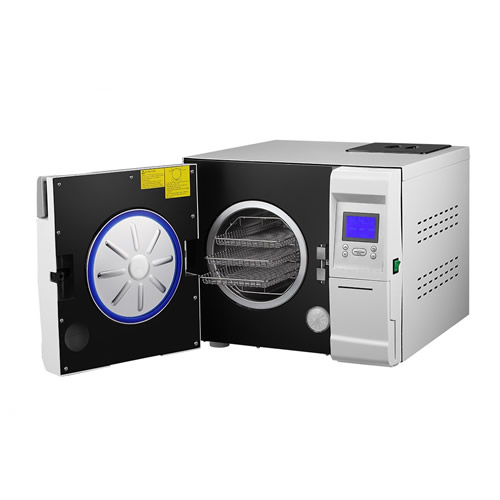

This Class B autoclave pressure steam steriliser is ideal for use within any Dental or Veterinary practice.
All Class B autoclaves in the range come with a standard 1-year warranty.
Autoclave capacity: 22 litres.
| Category | Class B |
| Working type | Front loading and fully automatic |
| Design | Modern design aesthetic |
| Program | 7 Preset sterilisation programs |
| 1 Custom program | |
| 1 Cleaning Program | |
| B&D / Helix / Vacuum testing programs | |
| Data output | Printer & USB Output |
| Safety | Double lock |
| Water Quality | Water quality checking module |
| Steam Generating | Separated steam generator |
| Water tank | 2 *4L plastic, open, easy to clean |
Program:
| Program |
121° Solid |
121° Hollow |
121° Porous |
134° Solid |
134° Hollow | 134° Porous |
| Temp (°C) | 121 | 121 | 121 | 134 | 134 | 134 |
| Pressure(KPA) | 110 | 110 | 110 | 210 | 210 | 210 |
| Sterlisation Time(Min.) | 20 | 20 | 20 | 4 | 4 |
4 |
| Program | Prion Test | User defined | BD/Helix Test | Vacuum Test | Clean |
| Temp (°C) | 134 | custom | 134 | / | 105 |
| Pressure(KPA) | 210 | custom | 210 | -80 | 20 |
| Time(Min.) | 19 | custom | 3.5 | 15 | 5 |
Technical Data:
| Capacity | 22 litre autoclave |
| Class | B |
| Certification | CE 1023, ISO 13485 |
| Standard | BS EN 13060:2004 + A2:2010 |
| Frequency | 50Hz |
| Plug | 3 pin plug |
| Wattage | 2.4 KW |
| Sterilization temperature | 105 - 134°C |
| Max working pressure | 0.21-0.23MPA |
| Material of chamber | Stainless steel 304 |
| Colors available | White |
| Screen type | LCD |
| Screen size | 6 X 4.25 cm |
| Language available | English, Italian, German,Chinese |
| Lock system of door | Mechanical + electrical lockers |
| User password | Yes |
| Output | Thermo printer & USB |
Standard package list:
| 22L Autoclave | 1 |
| Power cable | 1 |
| Water drain fitting | 1 |
| Tray | 3 |
| Tray holder | 1 |
| Tray handle | 1 |
| Instruction manual | 1 |
Package info:
| Net weight | 55kgs |
| Gross weight | 63kgs |

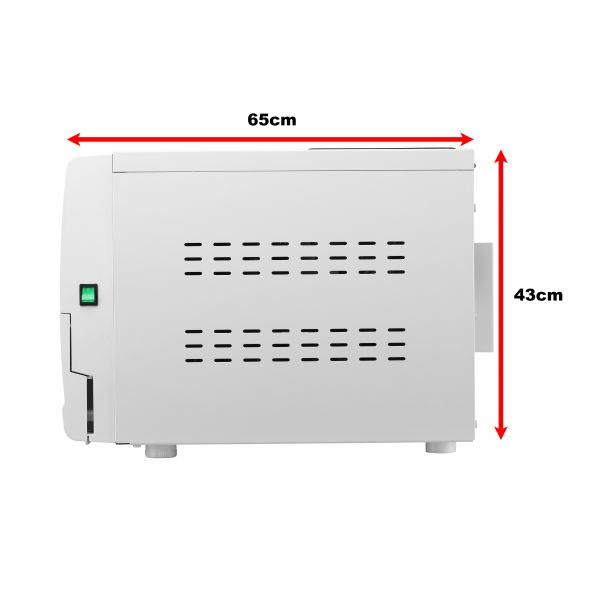

| Dimesions | 65cm*50cm*43cm |
| Package size | 77cm*57cm*51cm |
| Chamber | 44cm deep x 25cm |
